Ni Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For Automotive

Product Categories
Abis Circuits Co., Ltd.
Contact Now

Ni Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For Automotive

  • 1
  • 2

Brand Name : ABIS

Model Number : ML-4

Certification : UL, ISO9001,ISO14001,SGS,RoHS, IATF16949

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 60,000 s.q.m/month

Delivery Time : 0.5-4 week

Packaging Details : Vacuum packing

Material : High temp FR4

Layer : 4

Application : Fittings of Automotive

Cu weight : 2OZ outer

Surface treatment : Ni/Au 2U''

Min line : 0.2mm

PTH wall : 25um min

Board thickness : 1.7mm

Contact Now

Ni/Au 2U'' Surface Finish Multilayer Circuit Board For Fittings of Automotive


1. 4 layer high temp FR4.

2. Ni/Au 2U'' surface coating.

3. 25um min PTH wall.

4. Application for fittings of automobile.

5. Solder mask 20um min.


Ni Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For Automotive​

1 Layers 4
2 Material FR4 high temp
3 PCB thick 1.7mm
4 App Fittings of auto
5 Copper wall 25um min
6 Mask thick 20um
7 Nickel thickness 120-240u''
8 Au weight 2u''
9 Copper weight 2/2/2/2OZ
10 Solder mask Green LPI
11 Milling Tolerance ±0.1mm
12 Min gap 0.2mm
13 Via tolerance PTH:±0.075mm,NPTH:±0.05mm
14 Certification UL,ISO9001/14001,SGS,IATF16949,RoHS compliance
15 Profiling V cut

FAQ

Q1:Are you a plant?
A: Yes we have circuit board production experience more than 13years.

Q2:Is it cross section provided?
A: Yes it's available.

Q3:If we provide design file for you, Can you modify it?
A: Normally we can do it.

Q4: What about your board quality?
A: All tested before shipment arrange.

Q5: If I want to copy the circuit board, Is it possible to get design file?
A: Yes we can make it for you.

Q6: How about lead time?
A: 2-4weeks mornal, If project urgent the quick turn service available.

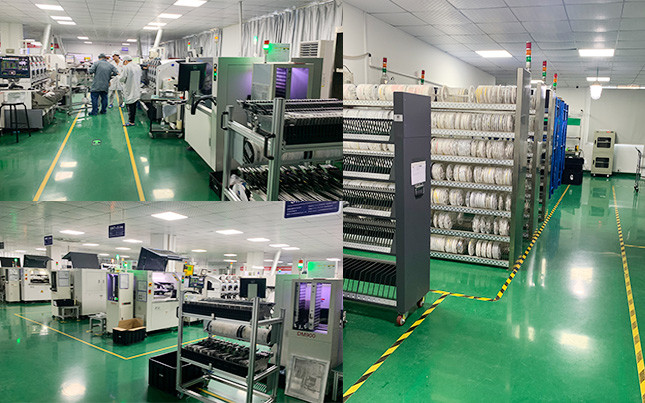

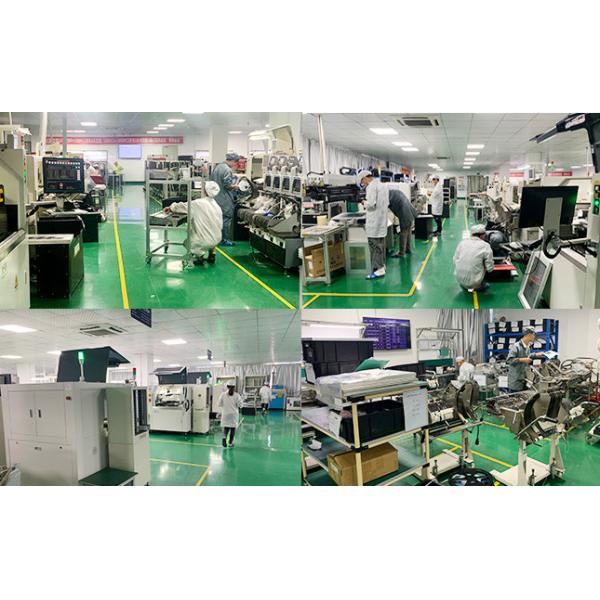

Factory view:

Ni Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For AutomotiveNi Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For Automotive


Ni Au 2U'' Surface Finish Multilayer Circuit Board 25um PTH For Automotive​
